Axial movement.
Radial expansion.
The setting action draws the wedge into the aluminum receiver, expanding it outward toward the casing.
1776 DOWNHOLE TOOLS
Downhole
isolation.
Rethought.
A wedge. A deformable receiver. An integrated approach to sealing and casing engagement.
FRAC PLUG TECHNOLOGYWEDGE + RECEIVER
01
Sealing and anchoring.
Designed into the receiver.
INTRODUCING 1776
Meet 1776.
In 30 seconds.
A brief introduction to 1776 Downhole Tools. Start here, then take a closer look at the frac plug assembly.
Watch the 2-minute assembly overviewRead the 30-second introduction transcript
Downhole isolation. Rethought.
Introducing 1776 Downhole Tools.
A wedge and expandable aluminum receiver.
An integrated approach to sealing and casing engagement.
Axial movement becomes radial expansion.
With sealing and anchoring designed into the receiver itself.
Explore a different approach to frac plug technology.
1776 Downhole Tools.
See the design. Start the conversation.
1776downholetools.com
INSIDE THE DESIGN
Every component.
One setting sequence.

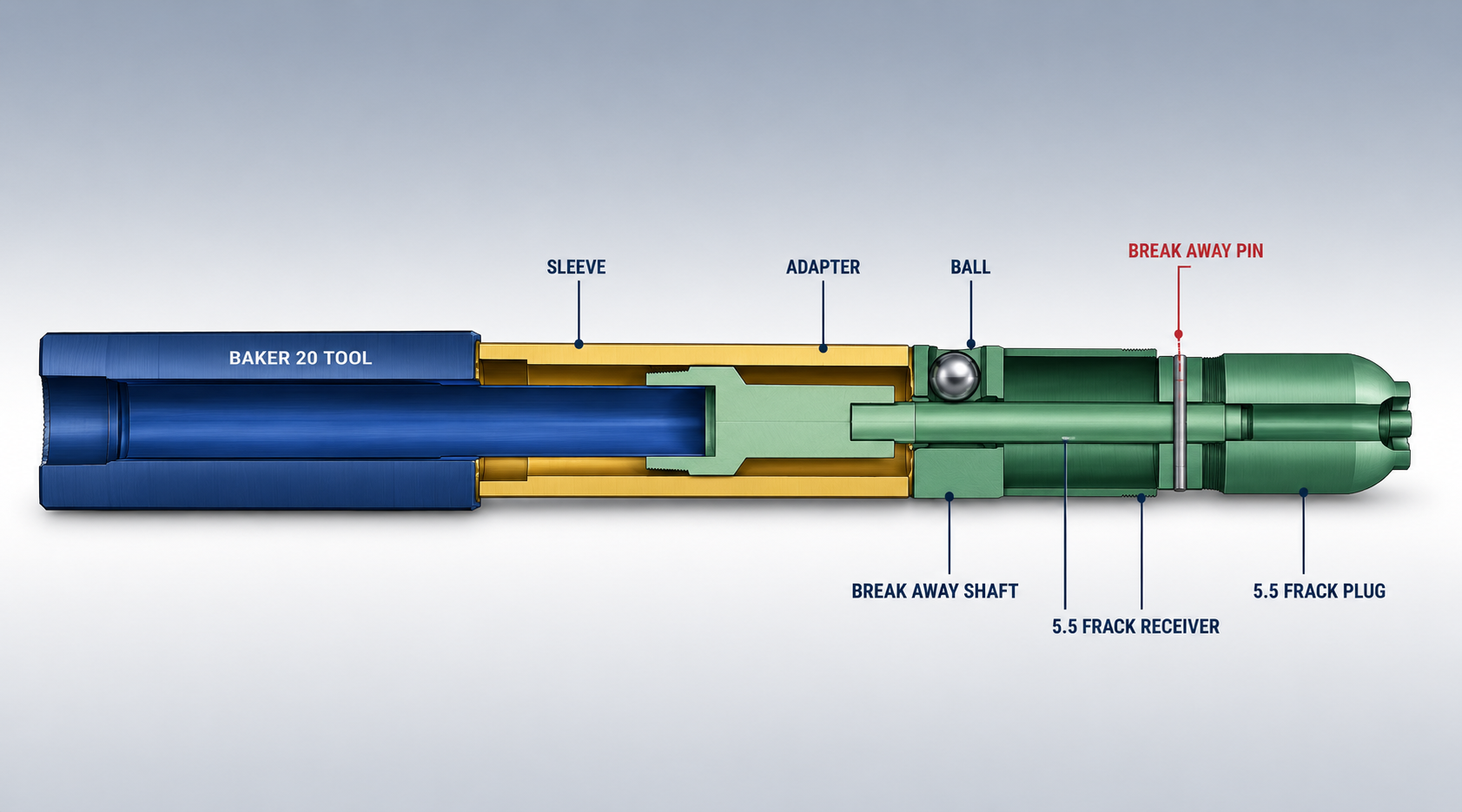

Follow the interaction between the plug, receiver, adapter, sleeve, breakaway shaft and ball.
THE RECEIVER MAKES THE DIFFERENCE
Movement becomes
engagement.
The wedge-and-receiver concept uses controlled deformation to activate sealing and engagement features formed into the receiver itself.
Axial movement.
Integral features.
A common purpose.
Raised sealing features and wickered engagement surfaces are designed to establish a seal and resist axial movement.
Component geometry.
Controlled release.
The illustrated arrangement uses relative component movement to retain and release the ball during the setting sequence.
THE FRAC PLUG
A specific design.
A defined application.
The current embodiment is designed around 5.5-inch, 20 lb/ft P-110 casing. Explore the materials, setting arrangement and application considerations behind the design.
Explore the 5.5-inch designCASING REFERENCE5.5″
20 lb/ftCasing weightP-110Casing grade
